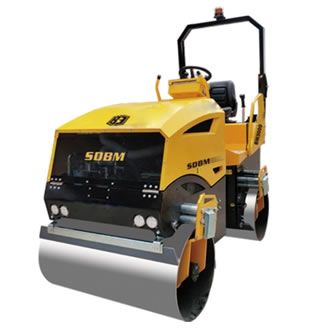

BM-3000

ITEM NO/DETAILS BM3000
ENGINE
Engine Changchai ZN390B
Engine type Three cylinder, Vertical, water-cooled, four-stroke, diesel
Number of cylinders 3
Output power (KW) 28.5
Rating speed(RPM) 2600
Fuel consupmtion(G/KWH) 240
Lubricating oil volume(L) 5
DRIVING
Electrical equipment(V) 12
Drive mode Variabledisplacement pump, stepless speed change, two wheels drive,motor parallel
Walking speed (KM/H) 0-10
Theoretical climbing ability(%) 30/40(vibration on/off)
STEERING
Swing angle(°) 30
Steering mode Hydraulic cylinder, articulated steering
Steering system Swing articulated
EXCITING SYSTEM
Vibration wheel Front/ Rear/ Double
Drive form Hydraulic Motors
Vibration frequency (HZ) 60
Vibration amplitude (MM) 0.5
Exciting force(KN) 35
SPRINKLING SYSTEM
Water spray form Intermittent pressure water spray
CAPACITY
Hydraulic oil capacity(L) 42
Fuel capacity(L) 42
Water tank capacity (L) 140
SIZE
Working width(MM) 1370
Overall length(MM) 2480
Machine height(MM) 2670
Turning radius(outer)(MM) 4130
Ground clearance(MM) 385
Wheel track(MM) 1720
Drum size 720*1200mm*2
Drum thickness(MM) 16
Wheel offset(MM) 50
WEIGHT
Weight(KG) 3000
Static load(N/CM) 135/125
