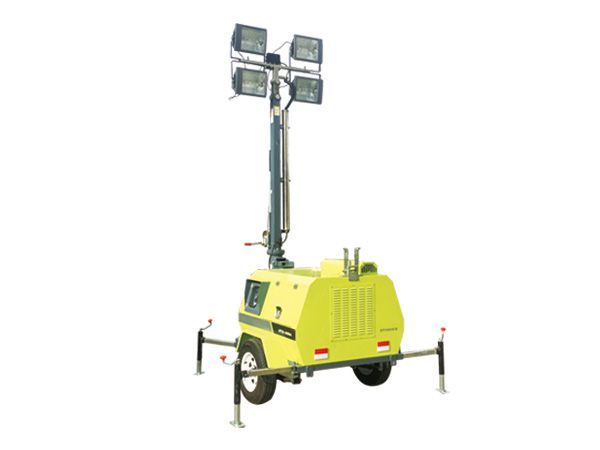

4TN4000 Lighting Tower-KUBOTA Generator
| Item No./Details | Mobile lighting Tower(Trailer) | |
| Application | Mainly applied to municipals, roads, buildings and other construction fields at night. | |
| Model | 4TN4000 | |
| Dimensions | ||
| Length | 4360mm (14'4'') | |
| Width | 1430 mm(4'8'') | |
| Height | 1450mm (4'9'') | |
| Full extending height | 9m (29'6'') | |
| Gross weight | 960kg (2115lb) | |
| Engine | ||
| Engine model | D1105 (KUBOTA) | |
| Speed(rpm) | 1500/1800 | |
| Number of cylinders | 3 | |
| Engine characters | 4 cycles,Watercooled diesel | |
| Combustion System | E-TVS | |
| Engine aspiration | Naturally aspirated | |
| Alternator | ||
| Standard configuration | SPARKS | |
| Frequency(Hz) | 50/60 | |
| Rating voltage (50/60Hz) | 230/240-120 VAC | |
| Alternator insulation | Class H | |
| Alternator protection grade | IP23 | |
| Mast & Lights | ||
| Type of Lights | Regular metal halide | |
| Light’s fixture | Oval | |
| Luminous flux | 110000 LM/light | |
| Number & power of lights | 4x1000W | |
| Number of mast sections | 3 | |
| Mast lifting | Manually | |
| Mast extension | Manually | |
| Mast rotation | Manually,Max.330° lockable | |
| Light tilt | Manually | |
| Trailer | ||
| Trailer suspension & axle with brakes | Leaf springs & single axle without brake | |
| Tow bar | Retractable & adjustable supporting wheel tow bar | |
| Stabilizing legs & number | 4 pcs extendable bar with manually retractable jacks | |
| Wheel's rim size & tires | 14" rim with regular tires | |
| Tow adapter | 2" or 50 mm ball adapter | |
| Tail light | Tail reflector | |
| Max towing speed | 100km/h (62 mph) | |
| Additional Features | ||
| Fuel tank Type | Rotational moulding plastic | |
| Fuel tank capacity | 170 liters (45 US gallons) | |
| Operating hours with full fuel | 120 hours | |
| Wires & electric components | Regular | |
| Generator starting type or controler | Key starting | |
| Max. against wind when fully extended | 20 m/s (45 mph) | |
| Acoustic pressure | 72dB(A) at 7 meters away | |
| Standard colour | STORIKE orange or yellow canopy, black chasis, galvanized masts, tow bar & stabilizing legs | |
|
|
|
|
